Mechanical Filter Press

Product Advantages:

The high-pressure diaphragm filter press uses TPE diaphragm technology, which offers a long service life, good stability, and versatility, making it suitable for various industries. It uses water pressure squeezing, with a pressure range of 0.8-2.0 MPa. The variable filter chamber technology greatly improves production efficiency and reduces moisture content in solid-liquid separation applications in industries like chemicals, pharmaceuticals, and mining. The high-pressure dewatering technology applied in the sludge dewatering industry reduces the filter cake moisture content to meet landfill and incineration standards (moisture content may vary by industry). Compared to traditional dewatering equipment, the filter cake's weight and volume are reduced by 50%. The entire system can achieve fully automated operation, equipped with an online filter cloth cleaning system and electric control valves, allowing for unattended operation.

Application Range:

The equipment is mainly used in industries such as papermaking, coke making, pharmaceuticals (antibiotics, calcium phytate, Chinese medicine extraction, organophosphorus, etc.), food (stevia, maltose, starch syrup, starch), and chemicals (dyes, pigments, etc.).

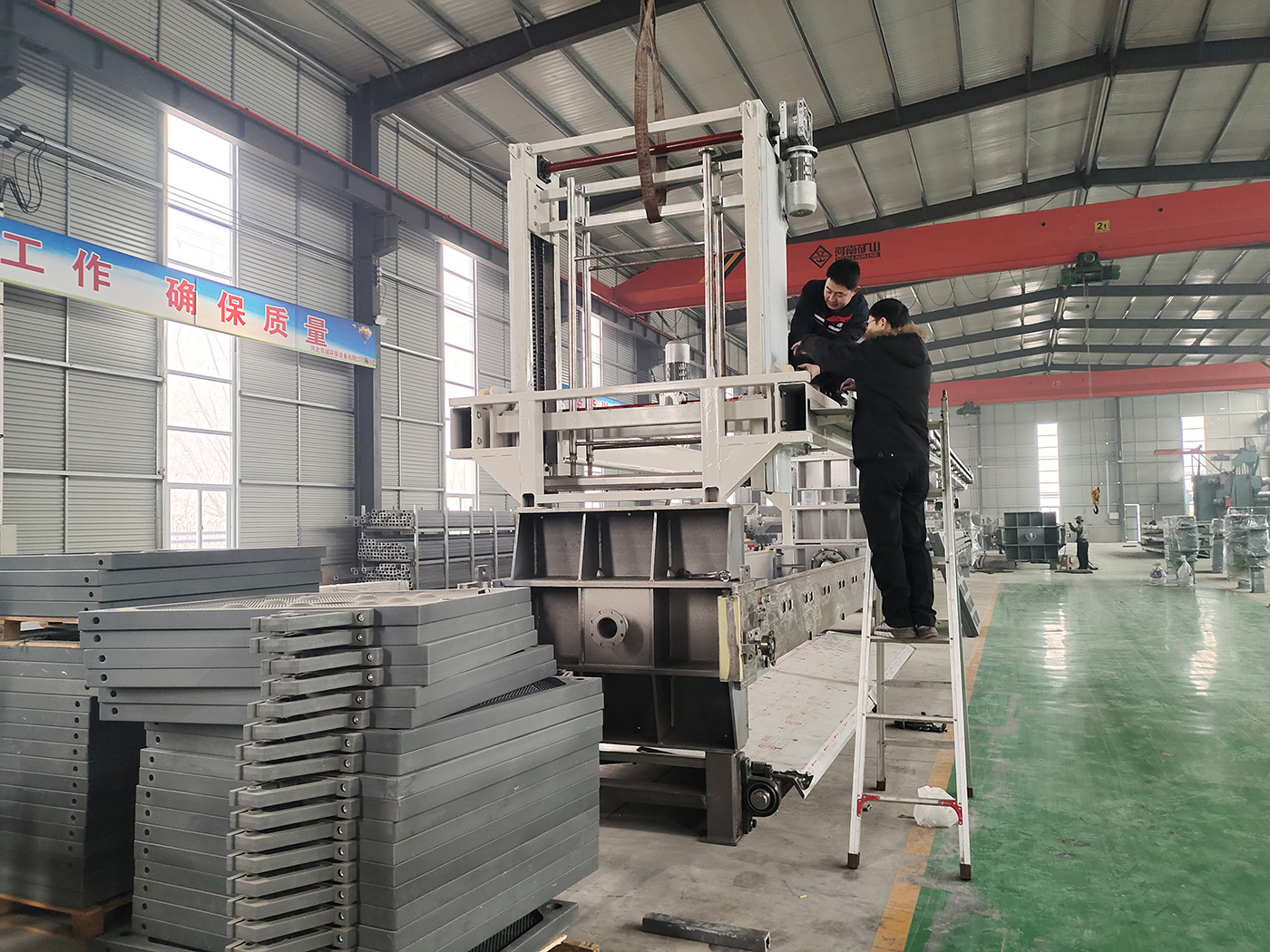

The filter press cloth washing cart, also known as the automatic filter cloth cleaning system or automatic filter press cleaning device, is a commonly used auxiliary device for filter presses. Its working principle involves using a PLC program-controlled motor servo drive system to automatically perform high-pressure washing of the filter cloth. This significantly improves filtration efficiency, enhances filtration effectiveness, extends the service life of the filter cloth, and reduces labor and manual workload, effectively solving the challenge of filter cloth cleaning in various industries using filter presses.

The filter press cloth washing cart primarily consists of six main components: the washing device travel beam, water inlet pipe, washing pipe, lifting device, travel mechanism, and limit control system.

Depending on the installation space available at the top of the filter press, there are two cleaning solutions: vertical washing and folding horizontal washing. Based on the viscosity of the material, options for medium-pressure and high-pressure cleaning are available. Additionally, for special operating conditions, customized designs can include separate washing with cold and hot water or separate washing with clean water and washing liquid.

The filter press cloth washing cart is widely used in various industries, including chemical and pharmaceutical filter presses, municipal wastewater filter presses, food and sugar processing filter presses, metallurgical wastewater filter presses, coal washing filter presses, and tailings dewatering filter presses.
